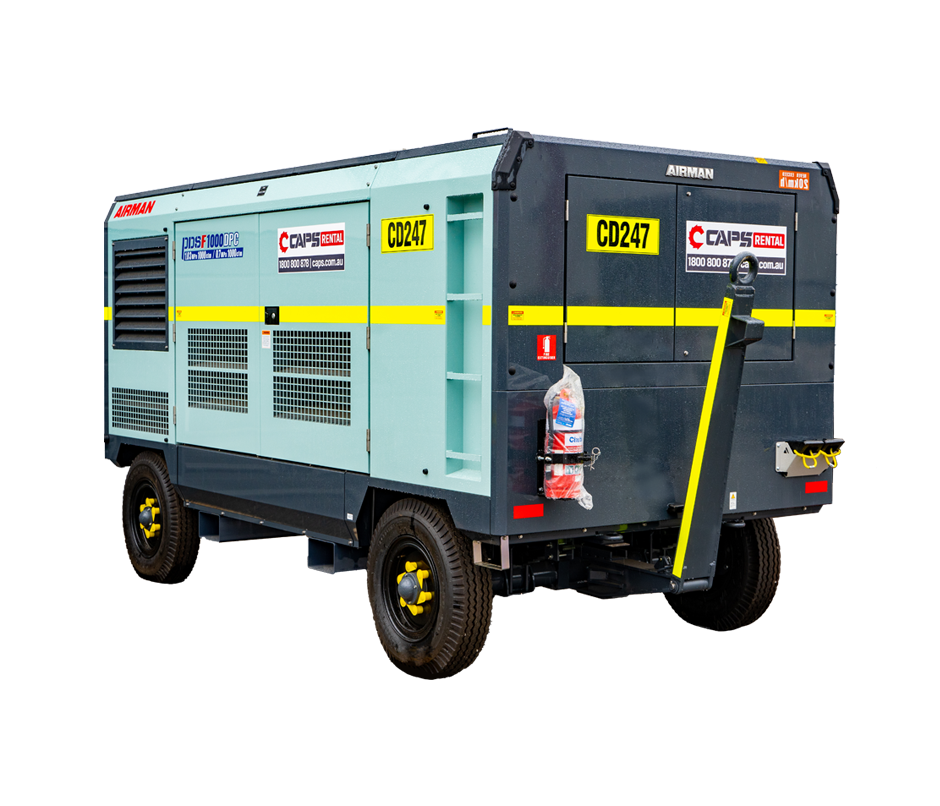

AIRMAN 1000CFM 150PSI AFTERCOOLED DUAL PRESSURE PORTABLE DIESEL COMPRESSOR – MINE SPEC PDSF1000DPC-4C5

For hire

Airman is one of the world’s largest manufacturers of diesel compressors. Featuring superior engineering, their products are well suited to Australia’s climatic conditions. Airman’s PDSF1000DPC-4C5 portable compressor is built on to a wagon wheeled undercarriage which is designed for easy mobility, as it can be readily moved around the work site and can withstand wear and tear for extended periods of time. The dual pressure feature of the PDSF1000DPC-4C5 assists in handling multiple roles in a project as pressure and capacity can easily be adjusted to your need. The powerful KOMATSU engine of the Airman PDSF1000DPC-4C5 is connected straight to the air end to enhance power transmission and noiseless operation.

This PDSF1000DPC-4C5 has been equipped with mine spec equipment (Starter isolator, Battery isolator, Fire extinguisher, Emergency stop button, CAT Jump start and Forklift Pockets) and  is available to hire across Australia. Contact CAPS for more details.

THIS PRODUCT IS AVAILABLE FOR HIRE

FEATURES

  • Wagon-Wheeled unit
  • Quality Japanese manufactured
  • Komatsu engine
  • Large capacity 600 litre fuel tank
  • Dual Pressure (7Bar & 10Bar working pressure)
  • Aftercooled design
  • Standard Rental options included:
  • Starter isolator
  • Battery isolator
  • Fire extinguisher
  • Emergency stop button
  • CAT Jump start
  • Forklift Pockets

SPECIFICATIONS

  1. Capacity (CFM) 1,000
  2. Working Pressure (psi) 102/149
  3. Max. Pressure (psi) 149
  4. Aftercooled Yes
  5. Engine KOMATSU SAA6D125E-5-A
  6. Engine Rated Power (kW) 262.5
  7. Fuel Tank Capacity (L) 600
  8. Run Time (h @ 75% load) 15
  9. Dimensions Lxlxh (mm) 4,370 x 2,000 x 2,290
  10. Weight (Wet/Dry) (kgs) 5,790/5,100
  11. Noise Level dB(A)@7m 75.8
