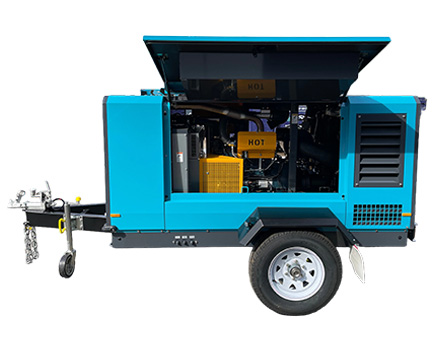

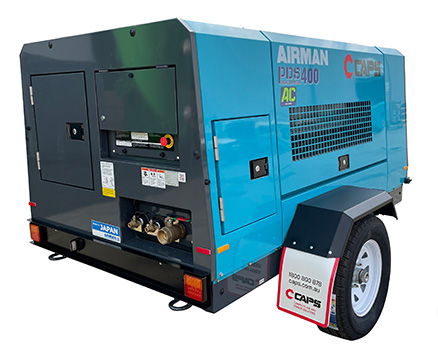

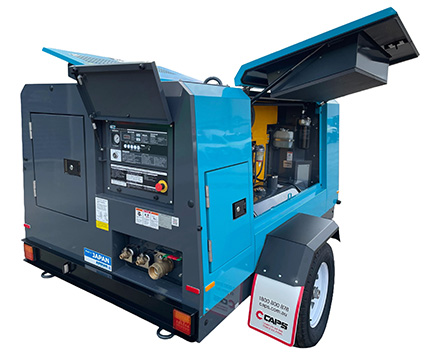

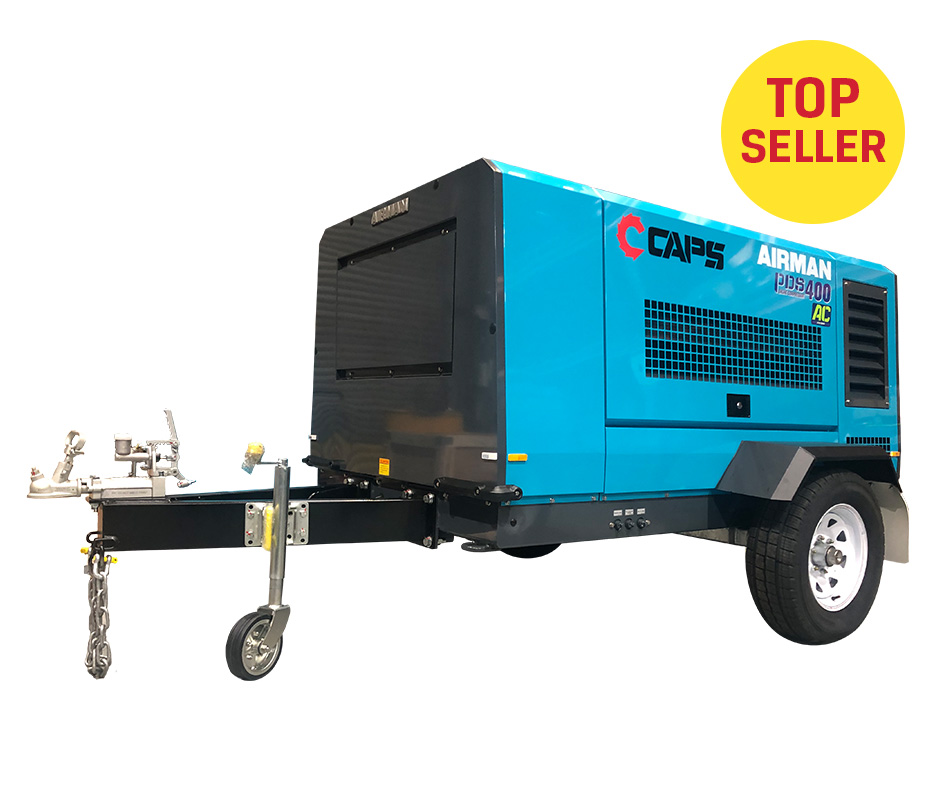

AIRMAN 400CFM TRAILER MOUNTED AFTERCOOLED PORTABLE DIESEL COMPRESSOR PDS400SC-6B5-T

The Airman PDS400SC-6B5-T is a popular choice for sand or media blasting across Australia. It provides sufficient air and pressure to power most popular nozzle sizes while still allowing enough air for a breathing air system. The powerful but fuel-efficient genuine Japanese Kubota engine offers impressive fuel savings and extended run times per tank diesel. Other key features include a comprehensive control panel, storage inside the compressor and very low sound levels. Plus, the factory fitted and efficient after-cooler and water separator remove moisture to a low dewpoint to give Exceptional performance and quality blasting results.

The PDS400SC-6B5-T is available with a wide range of options including electric or mechanical brakes. Contact CAPS for more details.

THIS PRODUCT IS AVAILABLE FOR PURCHASE, TO HIRE, OR FINANCE

FEATURES

  • POSSIBLY THE BEST TOWABLE ON THE MARKET
  • Trailer mounted unit
  • Quality Japanese manufactured
  • Kubota engine
  • Aftercooled model
  • Low noise level (70 dB(A) @7m)
  • Large capacity 178 litre fuel tank
  • 120psi max (100psi working pressure)

SPECIFICATIONS

  1. Capacity (CFM) 400
  2. Working Pressure (psi) 100
  3. Configuration Trailer
  4. Capacity (m3/min) 11.328
  5. Max. Pressure (psi) 120
  6. Aftercooled Yes
  7. Engine KUBOTA V3800DI-TIE2B-COHE1
  8. Engine Rated Power (kW) 75.20
  9. Fuel Tank Capacity (L) 178
  10. Run Time (h @ 70% load) 13.5
  11. Dimensions LxWxh (mm) 3,700 x 1,975 x 1,770
  12. Weight (Wet/Dry) (kgs) 1,960/1,810
  13. Noise Level dB(A)@7m 71

OPTIONS

  1. Starter isolator
  2. Battery isolator
  3. Fire extinguisher
  4. Emergency stop button
  5. CAT Jump start
