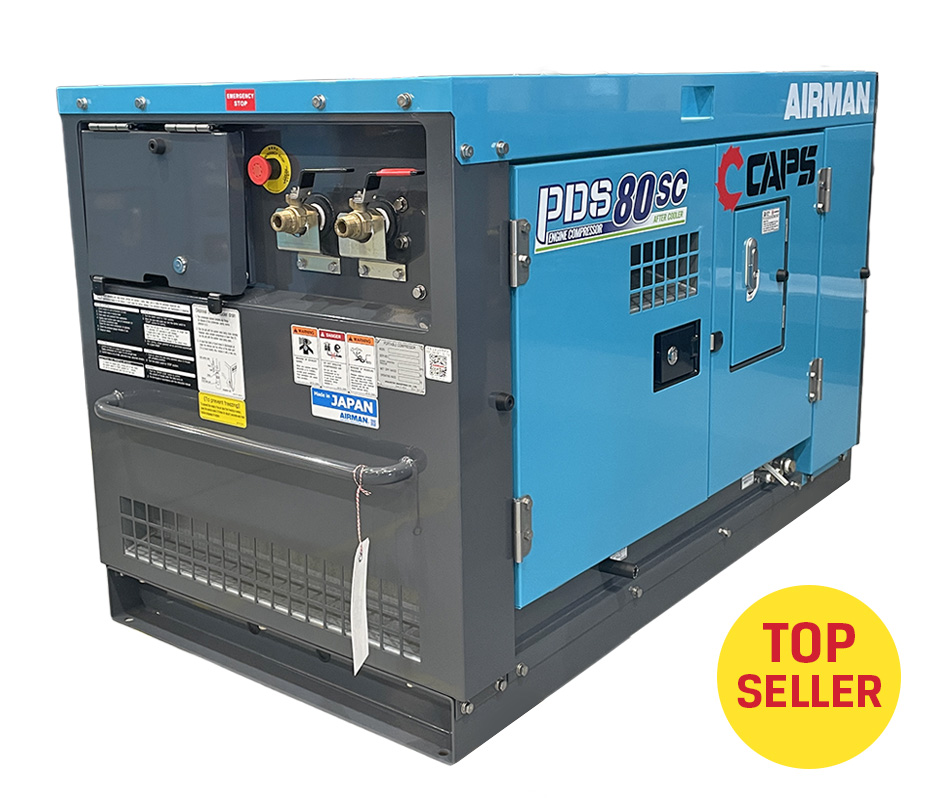

AIRMAN 80CFM BOX-TYPE AFTERCOOLED PORTABLE DIESEL COMPRESSOR PDS80SC-5C5

One of the world’s largest manufacturer of diesel compressors, Airman’s superior engineering is well suited to Australia’s Climatic Conditions. Airman PDS80SC-5C5 is another product that is guaranteed to satisfy every customer’s needs. It is a Box type air compressor that is installed with an aftercooler device. The aftercooler functions much like a heat exchanger that Manages the condensation in the compressed air, ultimately improving reliability and efficiency of the system. Powered by a KUBOTA diesel engine, it is sure to give you enough air power to finish even the toughest of jobs.

THIS PRODUCT IS AVAILABLE FOR PURCHASE OR FINANCE

FEATURES

  • NUMBER 1 IN BOX COMPRESSORS
  • Versatile box design
  • Quality Japanese manufactured
  • Kubota engines
  • Low noise (66 dBA @7m)
  • 120psi max (100psi working pressure)
  • Aftercooled design

SPECIFICATIONS

  1. Capacity (CFM) 80
  2. Working Pressure (psi) 100
  3. Configuration Box
  4. Capacity (m3/min) 2.2656
  5. Max. Pressure (psi) 120
  6. Aftercooled Yes
  7. Engine KUBOTA D902-K3A
  8. Engine Rated Power (kW) 17.00
  9. Fuel Tank Capacity (L) 25
  10. Run Time (h @ 70% load) 7.4
  11. Dimensions LxWxh (mm) 1,500 x 770 x 865
  12. Weight (Wet/Dry) (kgs) 440/405
  13. Noise Level dB(A)@7m 66

OPTIONS

  1. Battery isolator
  2. Fire extinguisher
  3. Emergency stop button
  4. Jump start
  5. High dust filter
  6. Battery box relocation
  7. Mine spec options

We have the widest range of precision engineered & robust industrial air and power solutions in Australia.

  • Nationwide Support

  • ISO9001 Certified Manufacturing

  • Technical Expertise

  • Global Capabilities
