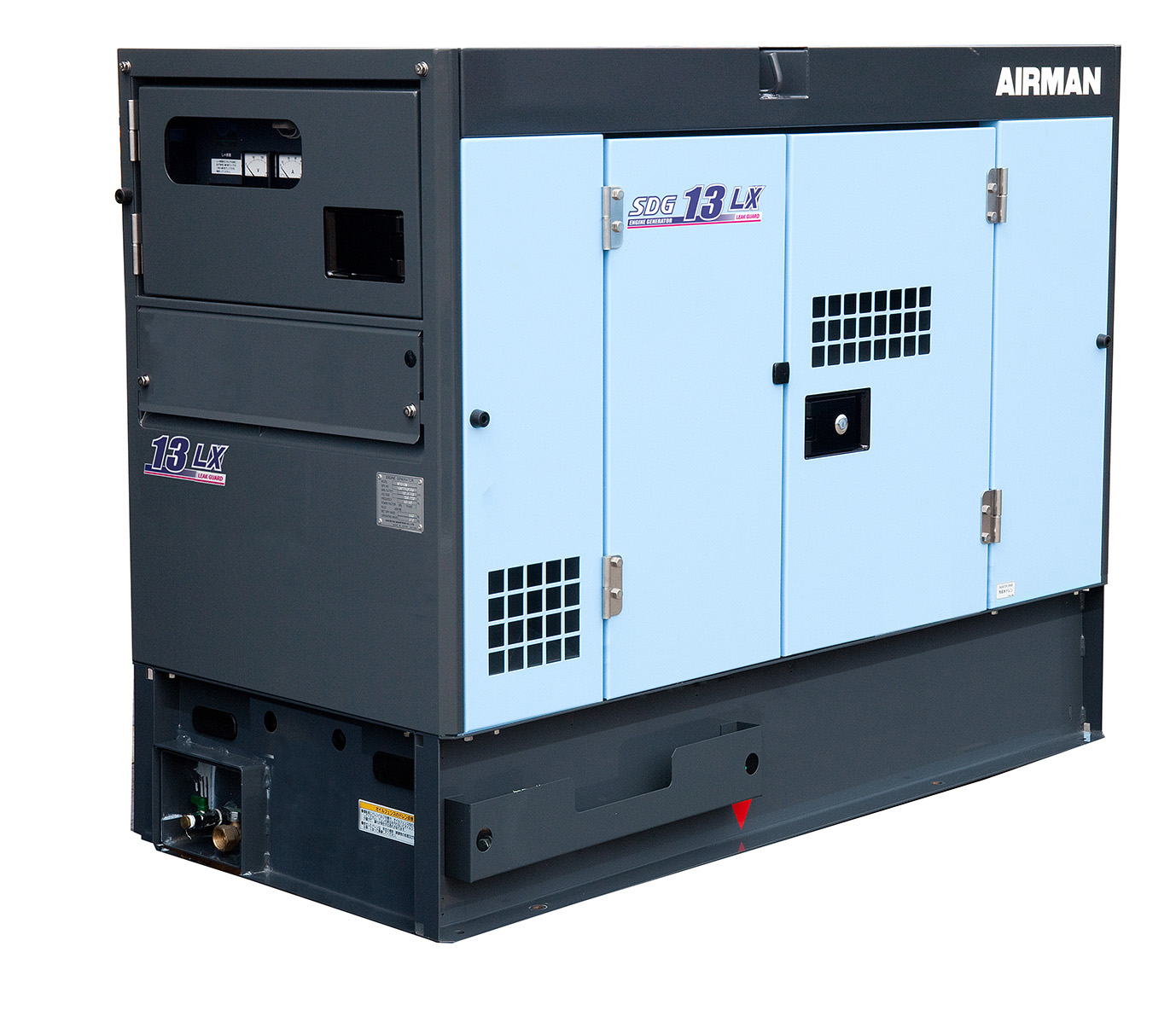

AIRMAN STANDBY 11KVA DIESEL GENERATOR SDG13LX-5B1N-DSE

Airman generators have long been the trusted workhorse for construction, rental, and mining, thanks to their renowned Japanese quality, clean burning engines, smart design, and exceptional fuel capacity.

The new range takes it up a notch with the integration of Deepsea’s leading electronic controller. The high-spec 7310MKII handles manual or auto-start applications with ease, making Airman ideal for diverse power needs – from building standby to rental fleets, construction sites, hybrid setups, agriculture, mining, mobile workshops, and
industrial power.

In Australia, CAPS Australia proudly distributes Airman, providing comprehensive service, parts, and technical support.

THIS PRODUCT IS AVAILABLE FOR PURCHASE OR FINANCE

FEATURES

  • Low emission Japanese Stage 3 engine
  • Extra large fuel tank
  • 4P Breaker
  • Deepsea controller with auto start capability
  • Electronic governor
  • Double walled chassis (bunded)
  • Continuous duty rated alternator
  • Low fuel warning
  • Cable connection bar
  • Glow plugs for fast starting
  • Earth leakage relay
  • Lifting point

SPECIFICATIONS

  1. Standby Power (kVA) 11.6
  2. Standby Power (kW) 9.2
  3. Voltage (V) 400
  4. Phases 3
  5. Frequency (Hz) 50
  6. Engine Make & Model Kubota D1503-K3A
  7. alternator Make & Model Airman
  8. Fuel Tank Capacity (L) 100
  9. Run Time (H) 17.5 hours @ 75% load
  10. Dimensions LxWxH (mm) 1390x650x1160
  11. Dry Weight (kgs) 580
  12. Noise Level dB(A) @7m 55
  13. Controller Deepsea 7310MKII

OPTIONS

  1. Bunded skids with fork slots
  2. Power outlet sockets to your specifications (typically 1 x 32amp 3phase and 2 x 15amp 1phase)
  3. Battery Isolator
  4. Fire Extinguisher
  5. High Viz stripes
  6. Lever style radiator cap
  7. Start isolator
  8. Battery Jump start receptacles
  9. Flashing Strobe running lamp
  10. Remote fuel bypass systems
  11. Exhaust spark arrestors
  12. lagging tape
  13. Trailer mounting
