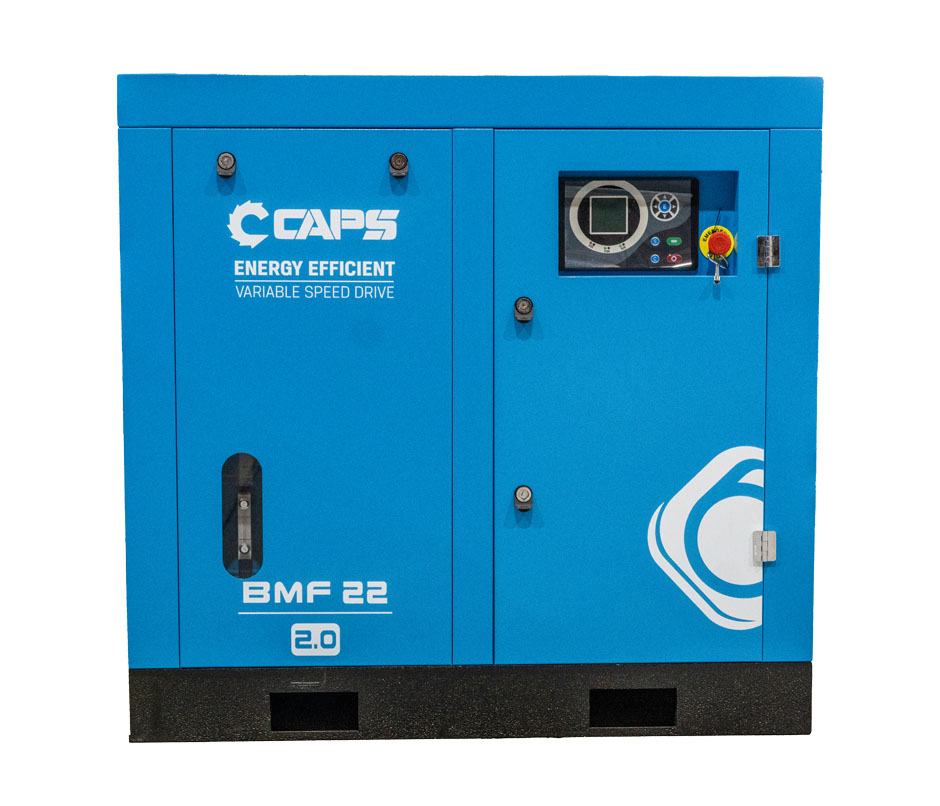

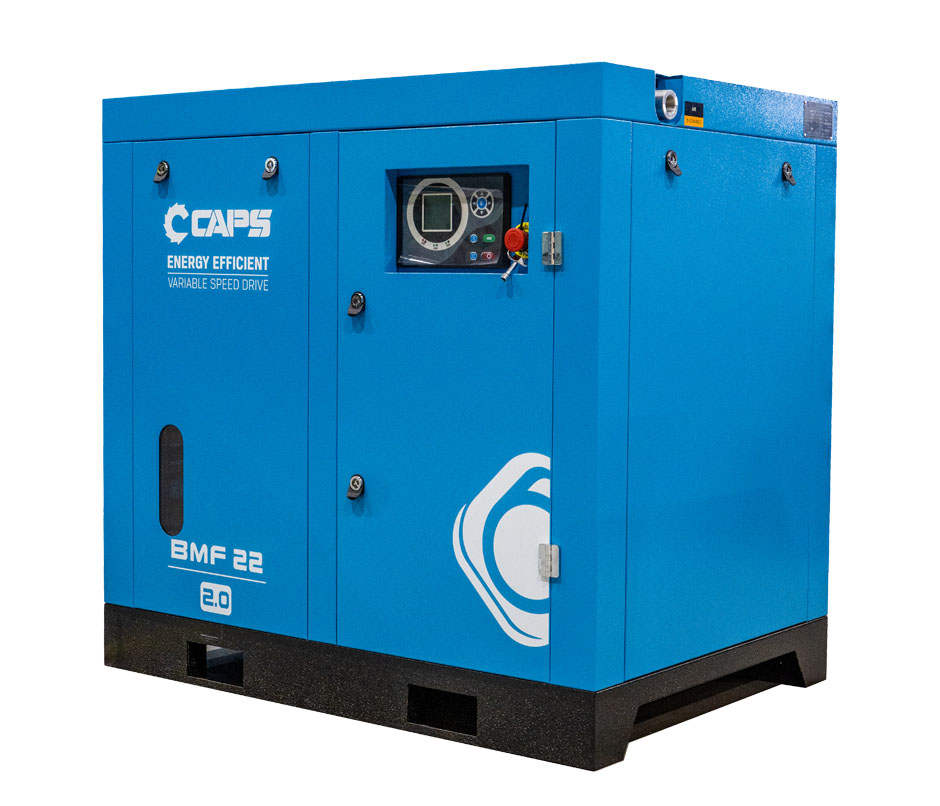

CAPS 22kW VARIABLE SPEED ROTARY SCREW COMPRESSOR BMF22-8

For sale

CAPS NEW RANGE OF ENERGY EFFICIENT PERMANENT MAGNET VSD DIRECT DRIVE COMPRESSORS
Energy efficiency and reducing your carbon footprint is a critical goal for any business. This is why CAPS has introduced our new range of rotary screw compressors packed with the latest energy saving technology which translates in to reduced energy costs and less impact on the environment.
The CAPS BMF22-8 can deliver 117 cfm with a working pressure of 8barg and a 22kW nominal motor rating.
Our new BMF range is affordable and built to last. With a 1-year manufacturer’s warranty and an extended warranty available (conditions apply) you can have the piece of mind you are buying a quality product which will keep you up and running.
All the compressors in this range come standard with a variable speed drive (VSD) and a permanent magnet motor.

THIS PRODUCT IS AVAILABLE FOR PURCHASE OR FINANCE

FEATURES

  • Highest rated IPM motor efficiency, which outperform
  • IE3 efficiency levels. Variable range of 30-100%
  • Inovance vector VSD control technology
  • Variable Frequency Drive (VFD)
  • High efficiency airend
  • Energy saving controller
  • IPM oil cooled motor with no cooling fan reduces power draw
  • 1:1 ratio direct drive ensures no loss of energy through gears or belts

SPECIFICATIONS

  1. Pressure (bar) 8
  2. Pressure (psi) 116
  3. Capacity (CFM) 117
  4. Capacity (m3/min) 3.3
  5. Power (kW) 22
  6. Cooling Air Cooled
  7. Stages Single
  8. Compressor Coolant Synthetic Coolant
  9. Controller ZMF02
  10. Ambient Min/Max (Degrees C) 0-45
  11. Pressure Min/Max (Bar) 6.5/8.2
  12. Noise Level dB(A)@1m 70
  13. Drive Type Direct
  14. Power Type 400/3/50

OPTIONS
