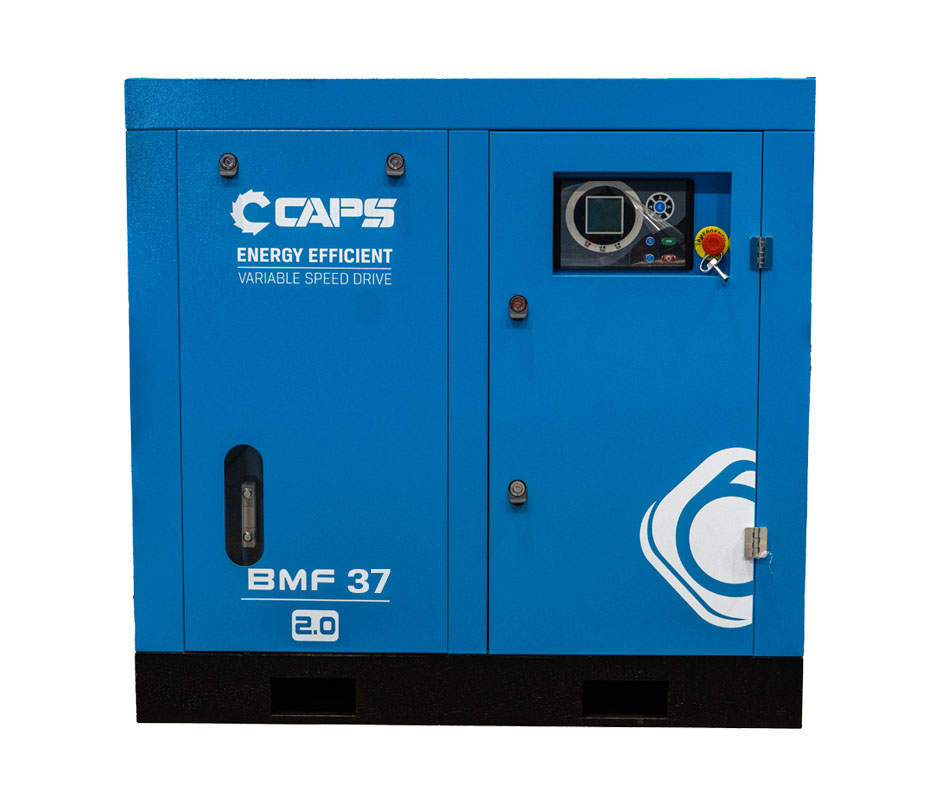

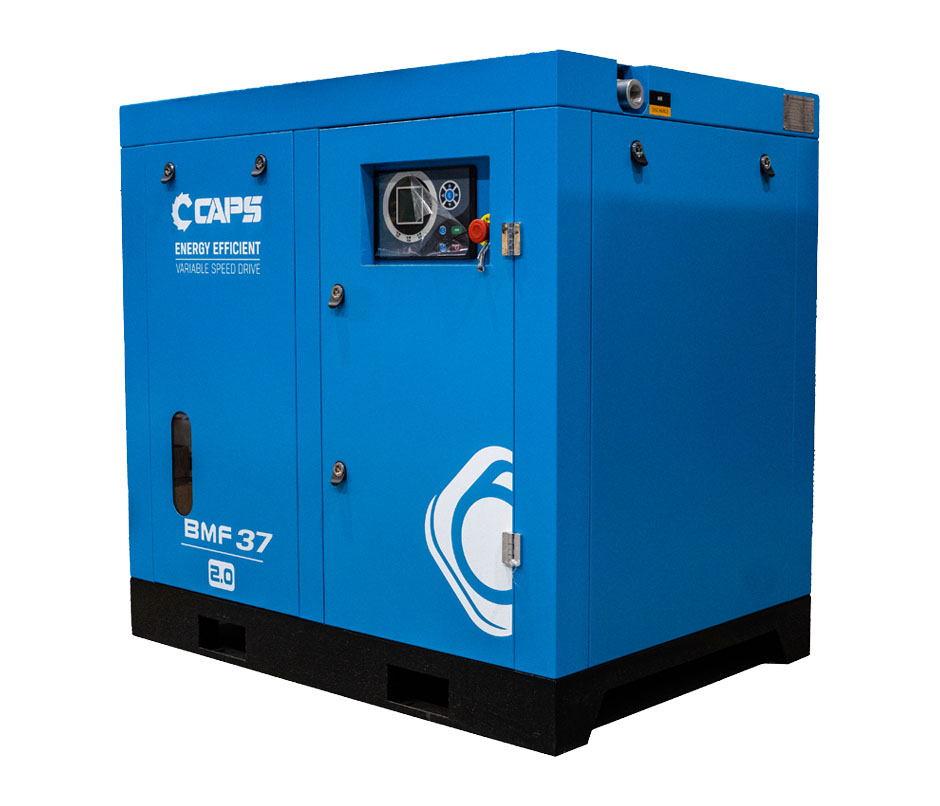

CAPS 37kW VARIABLE SPEED ROTARY SCREW COMPRESSOR BMF37-8

CAPS NEW RANGE OF ENERGY EFFICIENT PERMANENT MAGNET VSD DIRECT DRIVE COMPRESSORS
Energy efficiency and reducing your carbon footprint is a critical goal for any business. This is why CAPS has introduced our new range of rotary screw compressors packed with the latest energy saving technology which translates in to reduced energy costs and less impact on the environment.
The CAPS BMF37-8 can deliver 222 cfm with a working pressure of 8barg and a 37kW nominal motor rating.
Our new BMF range is affordable and built to last. With a 1-year manufacturer’s warranty and an extended warranty available (conditions apply) you can have the piece of mind you are buying a quality product which will keep you up and running.
All the compressors in this range come standard with a variable speed drive (VSD) and a permanent magnet motor.

THIS PRODUCT IS AVAILABLE FOR PURCHASE OR FINANCE

Learn more

Enquire Now

FEATURES SPECIFICATIONS OPTIONS

FEATURES

Highest rated IPM motor efficiency, which outperform
IE3 efficiency levels. Variable range of 30-100%
Inovance vector VSD control technology
Variable Frequency Drive (VFD)
High efficiency airend
Energy saving controller
IPM oil cooled motor with no cooling fan reduces power draw
1:1 ratio direct drive ensures no loss of energy through gears or belts

SPECIFICATIONS

Pressure (bar) 8
Pressure (psi) 116
Capacity (CFM) 222
Capacity (m3/min) 6.3
Power (kW) 37
Cooling Air Cooled
Stages Single
Compressor Coolant Synthetic Coolant
Controller ZMF02
Ambient Min/Max (Degrees C) 0-45
Pressure Min/Max (Bar) 6.5/8.2
Noise Level dB(A)@1m 72
Drive Type Direct
Power Type 400/3/50

OPTIONS
