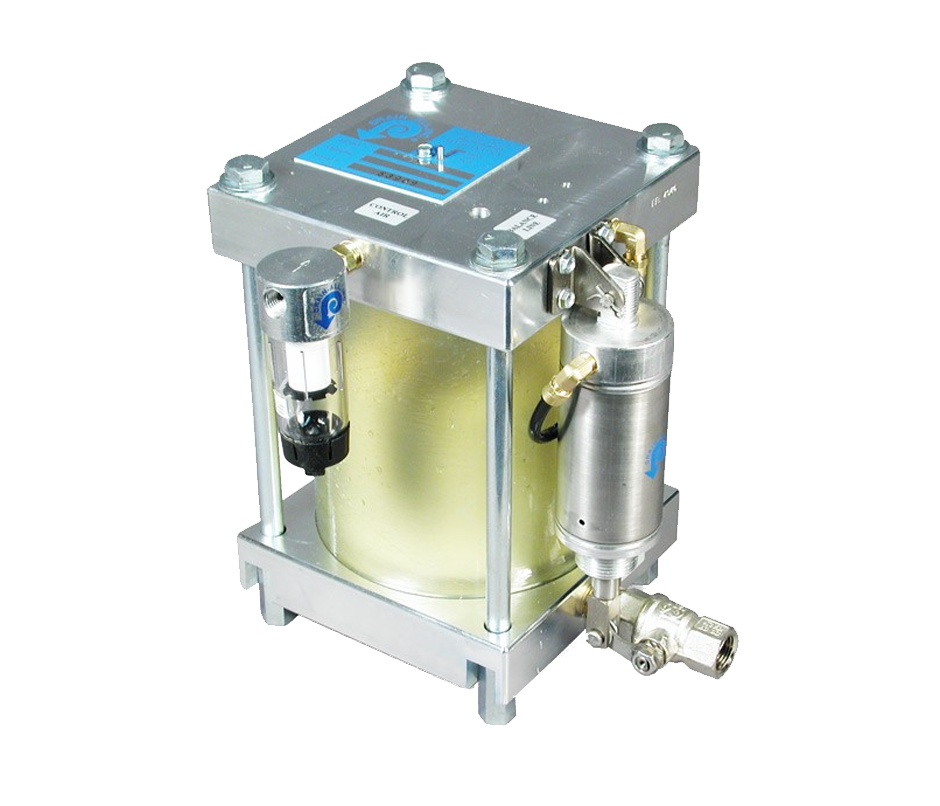

CAPS PNEUMATIC ZERO LOSS DRAIN DH50-0LSF2

For sale

Pneumatic zero loss drains that does not require any electrical power. Magnetic level sensing, which shut before any compressed air is lost. This drain could save you hundreds of dollars off your yearly compressed air costs, with no wastage of compressed air. The large 1/2″ ball valve open fully, allows an uninterrupted condensate flow – the largest orifice drain in the market.

THIS PRODUCT IS AVAILABLE FOR PURCHASE

FEATURES

  • Suitable for a range of compressed air ancillaries including inline filters,
  • drop down lines, receivers and dryers.
  • Requires pneumatic pressure.

SPECIFICATIONS

  1. Inlet/Outlet Connections 1/2"
  2. Capacity (m3/min) N/A
  3. Operating Pressure (bar) 5-11.7
  4. Max. Pressure (bar) 11.7
  5. Voltage (V) N/A
  6. Frequency (Hz) N/A
  7. Dimensions Lxlxh (mm) 235x267x279
  8. Weight (kgs) 9.5

OPTIONS

  1. installation service
  2. High pressure applications
  3. High Corrosion applications
