HERTZ 18.5KW VARIABLE SPEED ROTARY SCREW COMPRESSORS FRECON18.5-7

HERTZ FRECON series variable-speed compressors drive the motor with the frequency converter to adjust the compressor operation speed according to your requirements and save up to 35% energy. Thanks to its high-quality equipment and excellent engineering in its design, it provides a very efficient and flexible use as per requirements.

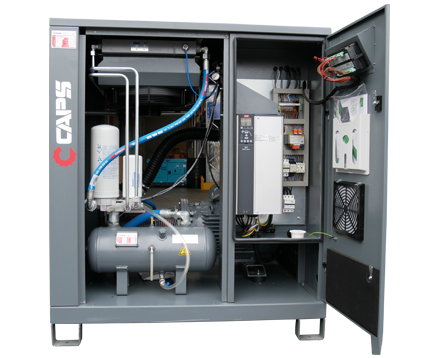

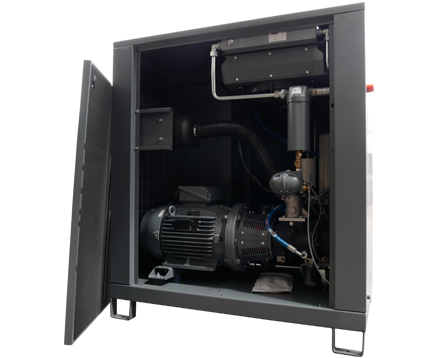

The Hertz FRECON18.5-7 is a variable speed rotary screw air compressor that has a capacity of 37.10-123.66cfm with a 7.5barg working pressure and 18.5kW nominal motor rating.
The main motor and drive system is directly coupled one on one (1:1) with the elastic coupling and are equipped with easy-to-use, robust and long-lasting microprocessor controllers with communication capabilities as per the product line to ensure smooth and uninterrupted operation.

THIS PRODUCT IS AVAILABLE FOR PURCHASE, TO HIRE, OR FINANCE

FEATURES

  • Air-cooled design with 43 Deg C ambient continuous-duty rating
  • 380-400v/3ph/50hz, IP55 TEFC motor with a 15% safety factor
  • High Efficiency Asymmetric Airend
  • VSD starter
  • Electronic controller Logic 26S
  • Compact Machine design
  • Low sound proof enclosure (70-75 dBA)
  • Direct Drive

SPECIFICATIONS

  1. Pressure (bar) 7
  2. Pressure (psi) 110
  3. Capacity (CFM) 124
  4. Capacity (m3/min) 3.5
  5. Power (kW) 18.5
  6. Cooling Air Cooled
  7. Stages Single
  8. Controller L26S
  9. Ambient Min/Max (Degrees C) 2 deg C / 43 deg C
  10. Pressure Min/Max (Bar) 5 / 13
  11. Noise Level dB(A)@1m 75
  12. Drive Type VFD
  13. Power Type 400/3/50

OPTIONS

  1. High Dust Air Intake Filter
