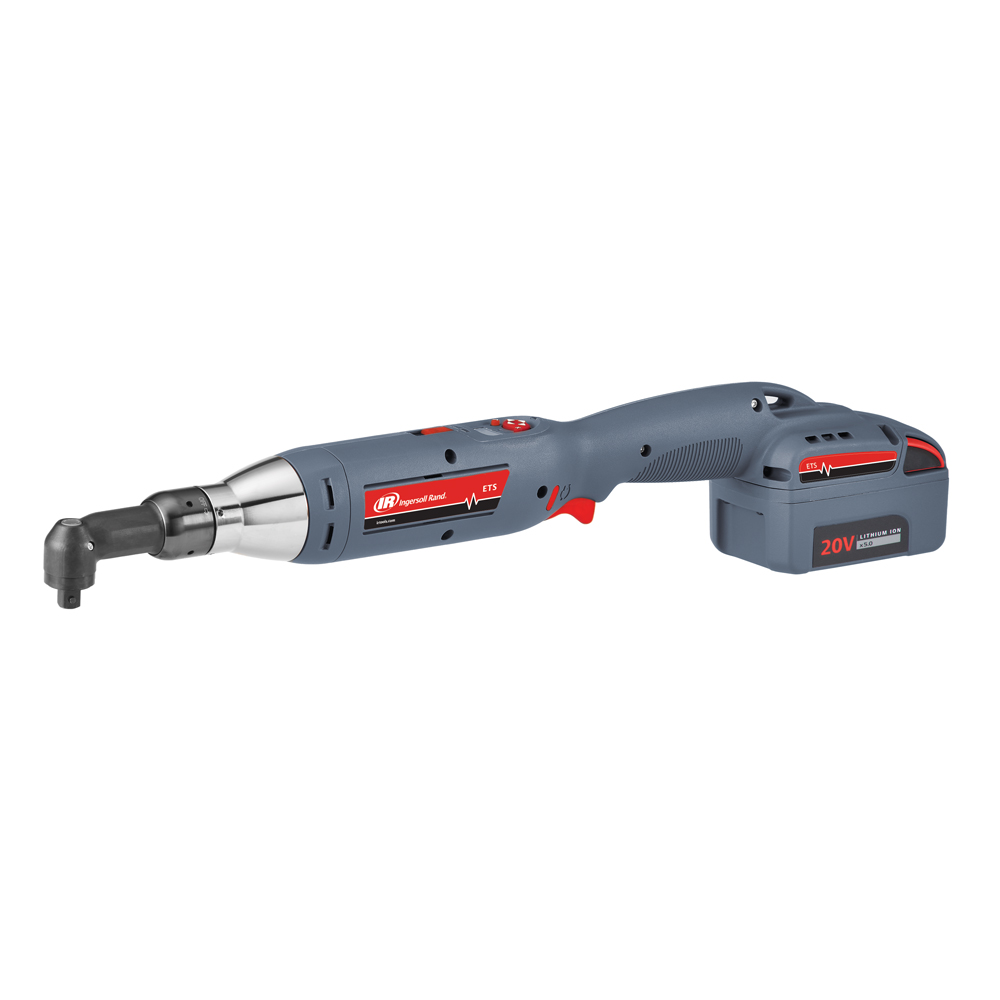

INGERSOLL RAND 5.4 – 27Nm 3/8″ square drive QXC Series ETS Right Angle Wrench QXC2AT27ES6K2

The innovative QXC ETS Series Cordless Closed Loop Transducerised Torque wrench will reduce your bolting time and costs, while ensuring repeatable accuracy for all torque-critical joints, with worker safety a high priority with the NEW Ergonomic Tightening System ETS for reduced reaction..
Designed to replace traditional clutch style wrenches, the 20V angle QXC Cordless Transducerised Precision torque wrenches offers 8 precision torque setting, simple set up via on board LED control panel, USB to PC or mobile phone app, and records for reporting purposes.
User-programmable are configured using methods such as torque (Nm, ft-lbs & in-lbs), angle & gang count, that reduces the numbers of tools required for multiple applications. The QX series can reduce up to 8 tools.



THIS PRODUCT IS AVAILABLE FOR PURCHASE

FEATURES

  • 8 programmable tightening configurations
  • ETS - Ergonomic Tightening System
  • Intuitive qualitative feedback using Green, Red, and Yellow indicators
  • Nm/ft-lbs/in-lbs prevailing torque setting
  • Backlite LED screen
  • 1,200 cycles of onboard tightening data storage
  • Configurable preventative maintenance alarms
  • Closed Loop Transducer Torque control
  • Brushless motor
  • Programmable via USB using ICS software or QX Insight Connect App
  • ICS Software FREE and included with QX Tools
  • Complete with 2 x 20V batteries and charger

SPECIFICATIONS

  1. Torque Range (Nm/FT-lbs) 5.4 - 27/3.98 - 19.9
  2. Power Type Battery 20V
  3. Drive Size (Inch) 3/8" Square drive
  4. Torque Setting 8
  5. Weight inc. Battery (Kgs) 2.2kg
  6. RPM 330

OPTIONS

  1. Balancers
  2. protective boots for batteries and gear heads
  3. Ergonomic torque arms
