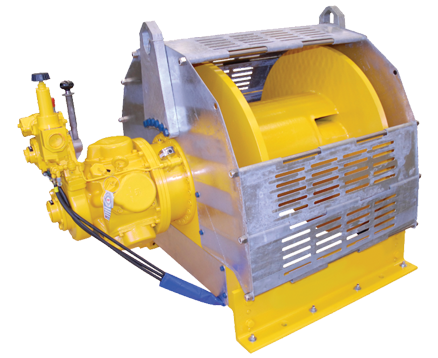

INGERSOLL RAND INFINITY AIR WINCHES 7,620 KG FA5I-24XK1G

Setting the standards in winch technology with time savings, space savings and enhanced safety, Ingersoll Rand’s line of high quality Infinity air winches are known throughout the world for their rugged dependability and quality in the hard-hat industries. Featuring internal gear boxes and fabricated frames, Infinity winches can be made in a variety of configuration to suit particular applications. Numerous options, cold weather and type approvals offered. Special applications welcomed. The FA5I-24XK1G have a Line Pull Capacity First layer of 7,620 kg.

THIS PRODUCT IS AVAILABLE FOR PURCHASE

FEATURES

  • Durability: rugged all steel construction and fabricated steel frames for longer life
  • Durability: powerful radial piston air motor provides reliable power and adjustable speed
  • Durability: self-cleaning KSC2 control valve improves flow and performance
  • Safety: 5:1 design factor for safe working load
  • Safety: Lift-to-Shift variable speed lever provides precise control and built-in safety
  • Safety: ATEX Zone 1 and Zone 2 compliance standard
  • Performance: minimum 18:1 drum diameter to wire rope diameter reduces wire rope wear
  • Performance: integrated gearbox-in-drum design for use in compact applications
  • Performance: built-in lifting lugs designed for lifting the weight of the winch plus wire rope
  • Performance: guideline/podline deep water models are designed for offshore applications

SPECIFICATIONS

  1. Lifting Weight (kgs) 5,000
  2. Pulling or lifting (kgs) Both
  3. Pendant or lever control Both
  4. Certification Optional
  5. Capacity (Kgs) 5,000
  6. Controller Lever or Pendent Control
  7. Breaking System Optional

OPTIONS

  1. Various Drum Lengths Lever or Pendent Controls
  2. Drum guards
  3. Airline accessories
  4. Construction cages Standard or Long Drum Tracability Certificates Marine Paints Witness Tests CE Compliance with European Machinery Directive Accu-Spooler ABS/DNV Surveys Rotary Limit Switch Drum Locking Pin Drum Divider Drum Grooving Press Roller Overload Protections with E Stop
