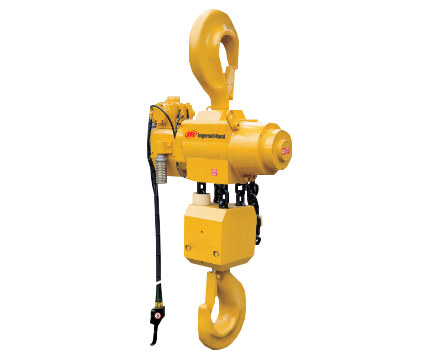

INGERSOLL RAND LIFTCHAIN AIR HOISTS 6 TON LC2A060QI

For sale

Ingersoll Rand Liftchain Hoists are the most advanced heavy-lifting hoists in the Ingersoll Rand hoist line. They incorporate all the best features they’ve developed from decades of experience into a compact, modular frame. Hook Mount versions offer maximum versatility to place them where you need them. Count on Liftchain hook mount hoists to get the job done.

6 metric ton lifting capacity featuring a compact, robust and modular design, the LC2A060QI liftchain air hoists is equipped of a 6 ton quadruple fall chain, with a variety of configurations including hook mount or with plain, geared, or motorized trolleys for mounting on jibs or beams.

THIS PRODUCT IS AVAILABLE FOR PURCHASE

FEATURES

  • Rugged, all steel construction in a compact design for durability in all environments.
  • Grade 80, corrosion resistant load chain with a 5:1 design factor
  • Designed for Explosive environments. ATEX Zone 2 standard (ATEX Zone 1 package Optional)
  • Gear type air motor with minimal moving parts is virtually maintenance free
  • Hydraulic motor offers high torque and high efficiency at low motor speed
  • Fully enclosed automatic multi disc brake for corrosion protection
  • Overload protection device ensures safe operation
  • Upper and lower limit switches integrated in the hoist body for better protection
  • Ball bearing mounted bottom hook for easier and smoother turning under load

SPECIFICATIONS

  1. Lifting Weight (kgs) 6,000
  2. Pendant or Pull chain Both
  3. Certification YES
  4. Air Consumption (CFM) 141
  5. Chain Fall (m/min) 1.5
  6. Chain Fall (ft/min) 5
  7. Capacity (Kgs) 6000

OPTIONS

  1. Pendent or Pull chain control Fixed lugs or Swivel Top Hook Pull or Motorised trolleys Marine Paint Stainless Steel chain Galvanized steel chain container
  2. Airline accessories
  3. Spark Resistance/Atex Zone 1 package
  4. Clevis & shackle attachment
  5. Rack and pinion drives
  6. Traceablility packages CE Packages
