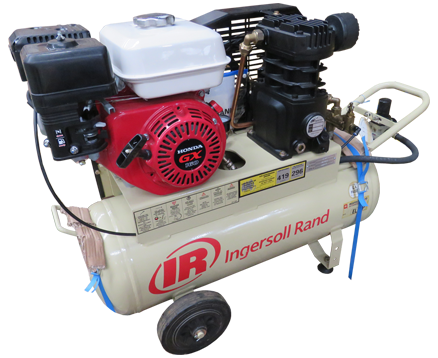

INGERSOLL RAND SCD ELITE SERIES PETROL POWERED Tank Mounted RECIPROCATING COMPRESSORS EL18P

Boasting a robust cast iron pump, the Ingersoll Rand EL18P produces high quality, reliable air that is well-suited to automotive service, fleet maintenance, body shops, wood working shops and much more.
This petrol driven Belt drive unit delivers 10.5cfm at 8.8 barg / 125psi and a motor rating of 5.5hp. It is mounted on a 50 L tank and utilises a 2 cylinder cast iron pump.

THIS PRODUCT IS AVAILABLE FOR PURCHASE

FEATURES

  • Genuine Ingersoll Rand cast iron pump.
  • Low pump speed.
  • Reliable Honda engine.
  • Petrol Driven
  • Pressure relief valve and gauge.
  • High quality combined filter & regulator
  • Rated Pressure: 125 PSIG (860 kPag)
  • Receiver volume: 50 litres

SPECIFICATIONS

  1. Free Air Delivery 10.5cfm/296lpm
  2. Pump SS3 cast iron
  3. NO. of Cylinders 2
  4. Compression Stages 1
  5. Free Speed (rpm) 850
  6. Oil Limit alert Switch
  7. Auto Condense Drain
  8. Motor Size 4kw/5.5hp
  9. Power Type Petrol
  10. Engine Honda
  11. Drive Type Belt
  12. Working Pressure 125psi/865kpa
  13. Starter Pull
  14. Constant/ Dual Controls Constant
  15. Centrifugal Unloader
  16. Air Tank Capacity (L) 50L
  17. Mounted Type Tank Mounted
  18. Weight (kgs) 75
  19. Dimensions Lxlxh (mm) 1060x450x780
  20. NOise Level dB(A)@1m

OPTIONS

  1. Various options available on request such as refrigerated air dryers, inline filters, water separators, regulators, filters and lubricators.
