AIRMAN MINE SPEC 10.5KVA PRIME POWER GENERATORS WITH EXTENDED TANK SDG13LX-5B1N

For hire

Airman is one of Japan’s leading manufacturers of Power Generators. Featuring superior engineering, their products are well suited to Australia’s climatic conditions and specifically designed for Prime/Rental or Site applications.

When utility power is not available, you can rely on prime generators to provide your site with a reliable solution. Built tough and easy to use and maintain this SDG13LX-5B1N Airman generator is all you need to provide a reliable source of Power.

This generator is equipped with a large capacity fuel tank under its base frame as standard (fully bunded), allowing for continuous operation without an auxiliary fuel tank. with several days of operation possible without a refill.

THIS PRODUCT IS AVAILABLE FOR HIRE

FEATURES

  • Exceptional productivity
  • Durable: 1500rpm low speed engine
  • Reliable: AVR alternator protecting all your sensitive appliances from voltage variation.
  • Safety: Engine shutdown protection (Over speed, oil pressure, water temperature and Earth leakage protection, Analogue indicators (Voltmeter, ammeter, frequency meter…)
  • Stress free maintenance: Side doors can be opened wide to offer access to all the filters and the ability to check the coolant and oil level. The radiator can be cleaned by removing both side front covers offering full access
  • Super Quiet
  • Environmental friendly: Engine meets EPA Tier 2 emission standards
  • Made In Japan

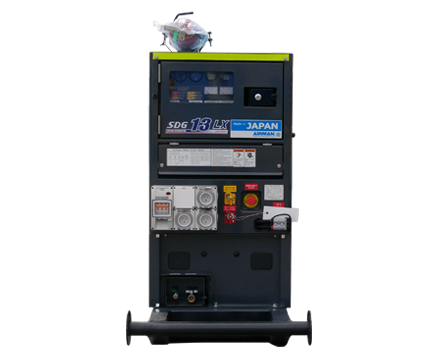

  • Externally mounted single and three phase IP65 rated switched sockets
  • Environmental containment bases
  • Battery isolator
  • Starter isolator
  • Anderson jump start
  • 4.5kg ABE extinguisher
  • Emergency-stop button
  • Reflective tape
  • Bunded
  • Crane lift point
  • Forklift pockets
  • 3 way fuel valve

SPECIFICATIONS

  1. Power (kVA) 10.5
  2. Power (kW) 8.4
  3. Voltage (V) 400
  4. Phases 3
  5. Frequency (Hz) 50
  6. Configuration Large Capacity Tank
  7. Engine Make & Model KUBOTA D1503-K3A
  8. alternator Make & Model Airman
  9. Fuel Tank Capacity (L) 100
  10. Run Time (h) @75% load 43.5
  11. Dimensions LxWxH (mm) 2,050x780x1,550
  12. Dry Weight (kgs) 738
  13. Noise Level dB(A) @7m 55
  14. Controller Analogue Panel
