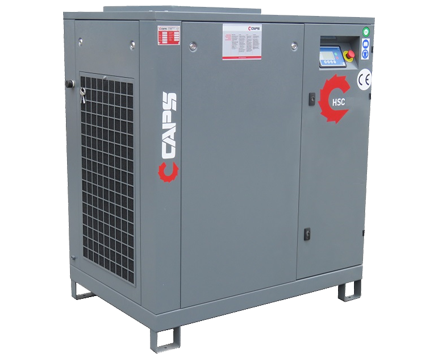

HERTZ 15KW ROTARY SCREW COMPRESSORS HSC15-10

Hertz HSC15-10 is a single stage rotary screw air compressor, which delivers a capacity of 81cfm at a working pressure of 10barg and 15kW nominal motor rating.
Used in compressors Australia wide, Hertz HSC Series single-stage air ends have proven to be a market leader in both reliability and efficiency with precision machined rotors, advanced bearing design with high load and a new rotor profile decreasing air leakages paths and required torque values.
Knowing that downtime equals loss of profit, the Hertz HSC Series compressors puts serviceability front and centre. The service-friendly layout provides instant access to all consumable items, with quick-release protective covers and easy-to use controllers minimising downtime and reducing maintenance costs.

THIS PRODUCT IS AVAILABLE FOR PURCHASE, TO HIRE, OR FINANCE

FEATURES

  • Air-cooled design with 43 Deg C ambient continuous-duty rating
  • 380-400v/3ph/50hz, IP55 TEFC motor with a 15% safety factor
  • High Efficiency Asymmetric Airend
  • Star-delta starter
  • Basic Electronic controller Logic 26S
  • Compact Machine design
  • Low sound proof enclosure (69-79 dBA)
  • Simple Belt tensioning system

SPECIFICATIONS

  1. Pressure (bar) 10
  2. Pressure (psi) 145
  3. Capacity (CFM) 81
  4. Capacity (m3/min) 2.3
  5. Power (kW) 15
  6. Cooling Air Cooled
  7. Stages Single
  8. Controller L26S
  9. Ambient Min/Max (Degrees C) 2 deg C / 43 deg C
  10. Pressure Min/Max (Bar) 5 / 10
  11. Noise Level dB(A)@1m 79
  12. Drive Type Belt
  13. Power Type 400/3/50

OPTIONS

  1. High Dust Air Intake Filter
